LED Driver 24V 600W IP67 1-10V

HLG-600H-24B

Varenr: 300-01-985

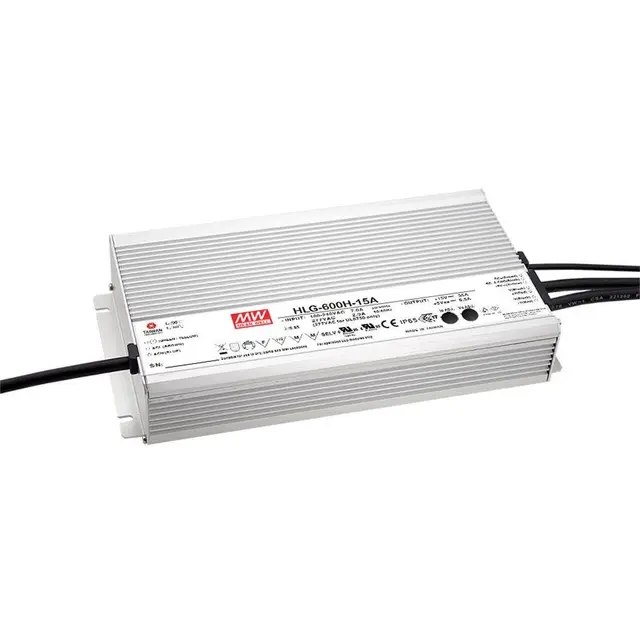

LED Driver 24V 600W IP67 1-10V HLG-600H-24B
Led driver på 24V, 600W, IP67. Kan dimmes med 1-10V

Led driver på 24V, 600W, IP67. Kan dimmes med 1-10V. Driveren leveres med kabler på ca 150mm. Det er bobble kabler på sekundær side for 24V

Technical dataInformation
Brand
MEAN WELL
Commodity
8504408390
Item number
HLG-600H-24B
Warranty pack
5 år
Series
HLG-600H
RoHS
Compliant
Description
AC-DC Single output LED driver Mix mode (CV+CC) with built-in PFC; Output 24Vdc at 25A; IP67; Cable output; adjust CC with 1-10V; PWM; resistance
Packing quantity
1
Application
ITE EN/UL/IEC 60950
LED EN 61347
Net weight (gram)
3830
Technology
AC/DC
Constant Current C.C.
Constant Power C.P.
Constant Voltage C.V.
Power Format
Box Type - Enclosed
Enclosed Metal housing
Output Power (W)
600
Output Voltage (V)
24
Output Current (A)
25
Input Voltage (V)
110/230 universal input
90 - 305
IP Rating
IP67
Width (mm)
187
Height (mm)
82
Depth (mm)
431
Dimming Technology
1-10V
PWM
Resistance
Housing Type
Metal
